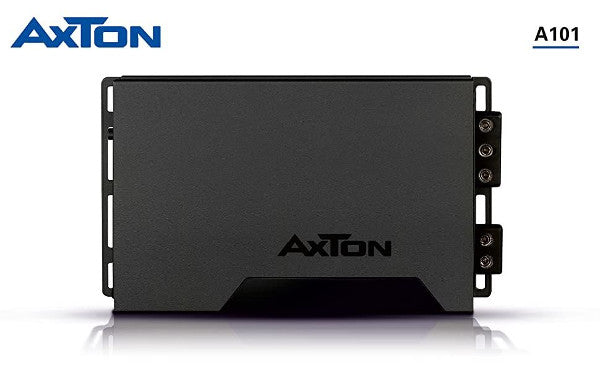

AXTON, A101 amplifier, 1x230W

For those who want to upgrade their music system with a compact but powerful quality amplifier, car audio specialists in the AXTON range have the 1-channel power amplifier A101: with a minimum width of 10.5 cm and a height of 4 cm, this amplifier offers a lot of power. Compact thanks to its dimensions, the Class D amplifier can be flexibly installed in a car, motorhome or elsewhere. The black aluminum body is processed and thought out in the highest class: despite its compact dimensions, the ilmity is directed to iðair also ensures optimal working temperature. The scheme of the amplifier and the layout of the PCB are optimized as much as for less iðdistortion and has only certain components. With 600 W RMS @ 1 Ohm, the iðbass amplifier plays more than just woofers. The monophonic amplifier has an integrated 12 dB/oct. low pass filter (continuously adjustable from 50 to 250 Hz), 12 dB / oct. postural filter (continuously adjustable from 10 to 55 Hz) and bass boost control @ 45 Hz (0 - 18 dB) In addition, there are high-level inputs with auto-on function for connecting to original radios without RCA input - so the amplifier can be easily combined with factory installed radios. Includes a bass remote control console. there are high-level inputs with auto-on function for connection to original radios without RCA input - so the amplifier can be easily combined with factory-installed radios.

Features

• Extremely compact Class D amplifier
• Aluminum radiator for optimal heat dissipation li>
• 12 dB / oct. low-pass filter (50 - 250 Hz), 12 dB / oct. Subwoofer (10 - 55Hz)
• Bass Gain Control @ 45Hz (0–18dB)
• High Level / Low Level Input
• 1 ohm stable
• Auto start via DC offset or music signal
• All suitable for vehicles with automatic start / suspension system

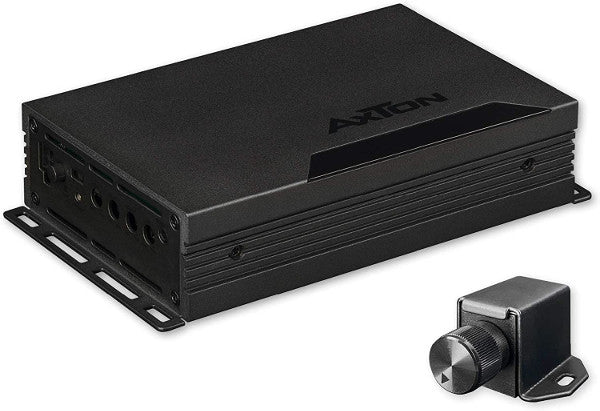

• Bass level remote control included
