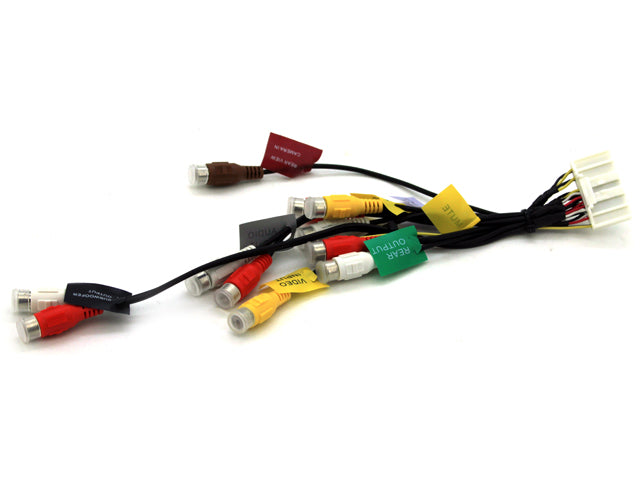

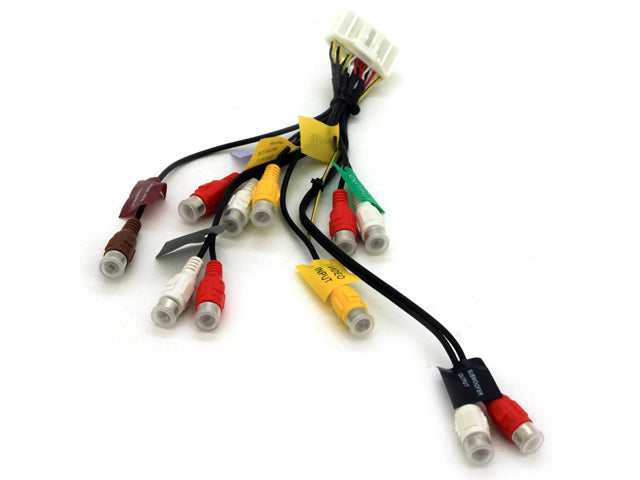

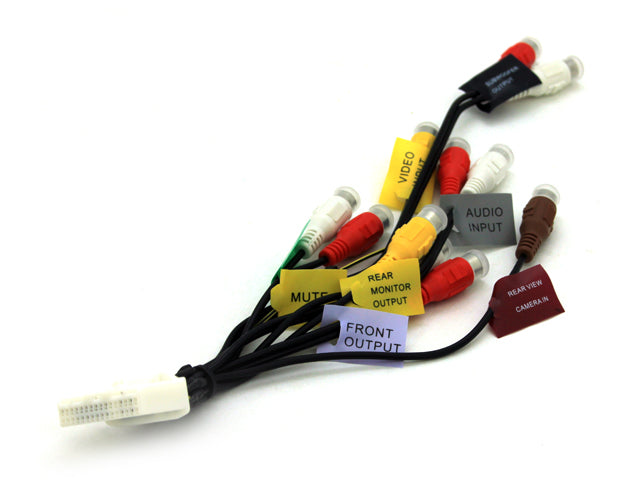

Pioneer AVIC-X920BT 32-Pin AV Connector (CDP1304) – RCA Audio & Video Adapter

Upgrade or replace your Pioneer AVIC-X920BT AV connector with this 32-pin adapter (CDP1304), designed for seamless integration of audio, video, and rearview camera functions.

Compatible Models:

✔ Pioneer AVIC-F10BT
✔ Pioneer AVIC-F20BT
✔ Pioneer AVIC-F920BT
✔ Pioneer AVIC-X920BT (US model)
✔ Pioneer AVIC-F9210BT
✔ Pioneer AVIC-F9220BT

Connection Features:

🔹 RCA Inputs/Outputs:
• Output for Rear View Monitor – Connect to rear view monitor for backup camera view
• Input for Rear View Camera – Integrate a backup camera into the system
• Video Input – Connect external video sources
• Audio Input (L+R) – Audio input for external devices
• Front Output (L+R) – High-quality audio for front speakers
• Rear Output (L+R) – Audio for rear speakers
• Subwoofer Output (L+R) – Deep bass and non-fading audio support

🔹 Additional Features:
• MUTE Cable – Allows muting of audio as needed
